SSH AgentPlugin Configuration: Private Keys, Targets, and Access Identities

The SSH AgentPlugin signs in to servers with remote accounts and private keys configured by an administrator. xAgent users select a target and enter an AgentPlugin access identity; they do not see the host address, remote account, or private key.

The current public release is 0.0.10. Put the private key in the SSH AgentPlugin keys/ directory before configuring a target. The management page accepts only a filename and does not upload private keys.

Install

Rerun the installer on the xAgent host and select only the SSH AgentPlugin:

curl -fsSL https://downloads.xagent.xiagaogao.com/scripts/install.sh \
  | bash -s -- --yes --agent-plugins ssh

Item	Linux	macOS
Configuration	/opt/xagent/agent-plugins/ssh/config.yml	~/.local/share/xagent/agent-plugins/ssh/config.yml
Private-key directory	/opt/xagent/agent-plugins/ssh/keys/	~/.local/share/xagent/agent-plugins/ssh/keys/
Audit log	/opt/xagent/agent-plugins/ssh/logs/ssh-audit.jsonl	~/.local/share/xagent/agent-plugins/ssh/logs/ssh-audit.jsonl
Executable	/usr/local/bin/xagent-ssh-agent-plugin	~/.local/bin/xagent-ssh-agent-plugin

Linux creates and starts the xagent-ssh-agent-plugin systemd service. The macOS installer also prepares and starts a managed service.

Put the Private Key in keys/

The private key must be a regular file under the keys/ directory beside config.yml. Do not configure an arbitrary absolute path.

• The file mode must be 0400 or 0600.
• The file must not be a symbolic link.
• The keys/ directory must not be writable by group or other; mode 0700 is recommended.
• private_key contains only the filename, such as production_server.
• Do not enter keys/production_server or an absolute path.
• Do not use a .pub public key as the private key, and never commit private keys to Git.

Linux:

sudo install -d -m 700 /opt/xagent/agent-plugins/ssh/keys
sudo install -m 600 /secure/path/id_ed25519 \
  /opt/xagent/agent-plugins/ssh/keys/production_server
sudo systemctl restart xagent-ssh-agent-plugin

macOS:

install -d -m 700 ~/.local/share/xagent/agent-plugins/ssh/keys
install -m 600 /secure/path/id_ed25519 \
  ~/.local/share/xagent/agent-plugins/ssh/keys/production_server

For manual startup troubleshooting, use:

cd ~/.local/share/xagent/agent-plugins/ssh
~/.local/bin/xagent-ssh-agent-plugin start --config ./config.yml

The AgentPlugin reads config.yml and keys/ only at startup. Restart it after adding or replacing a private key. The management page does not upload or hot-reload keys.

Register It in xAgent

As an administrator, open Agent Governance > AgentPlugin Connectors and select Add AgentPlugin.

Field	Value
AgentPlugin address	A same-host installation normally uses http://127.0.0.1:19095; for separate hosts, use an address reachable by xAgent Server
API Key	The API Key printed by the installer, matching ssh_agent_plugin.api_key

The AgentPlugin should show Online with protocol 4.4. SSH AgentPlugin 0.0.5 and later display a separate management action. If it is missing, upgrade the AgentPlugin and confirm that the API Key is not empty.

Only xAgent Server needs access to port 19095; do not expose it directly to the public internet.

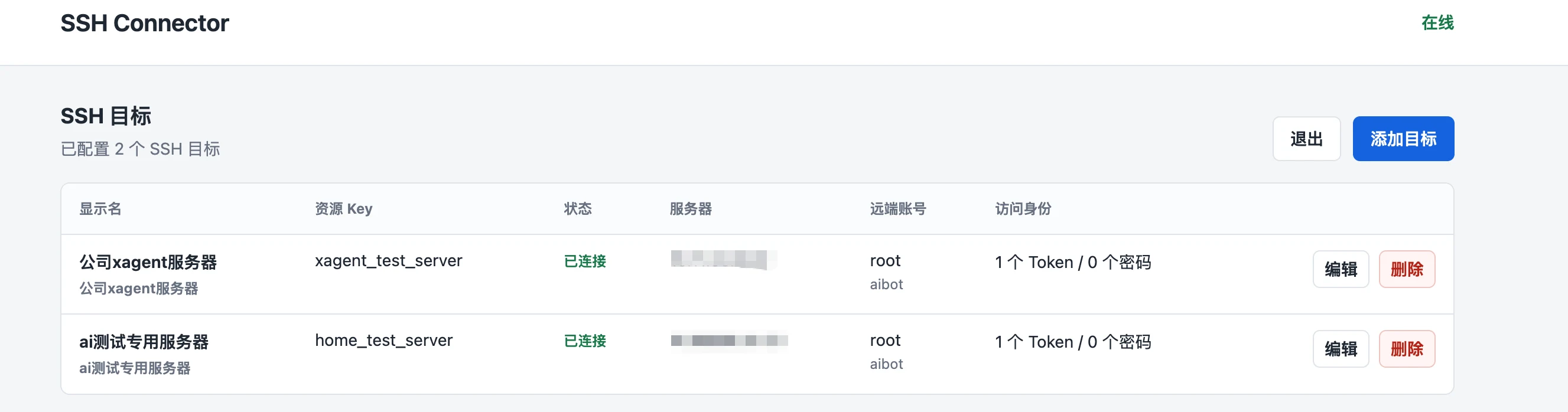

Add an SSH Target

Use the management action on the SSH AgentPlugin row to open the target page.

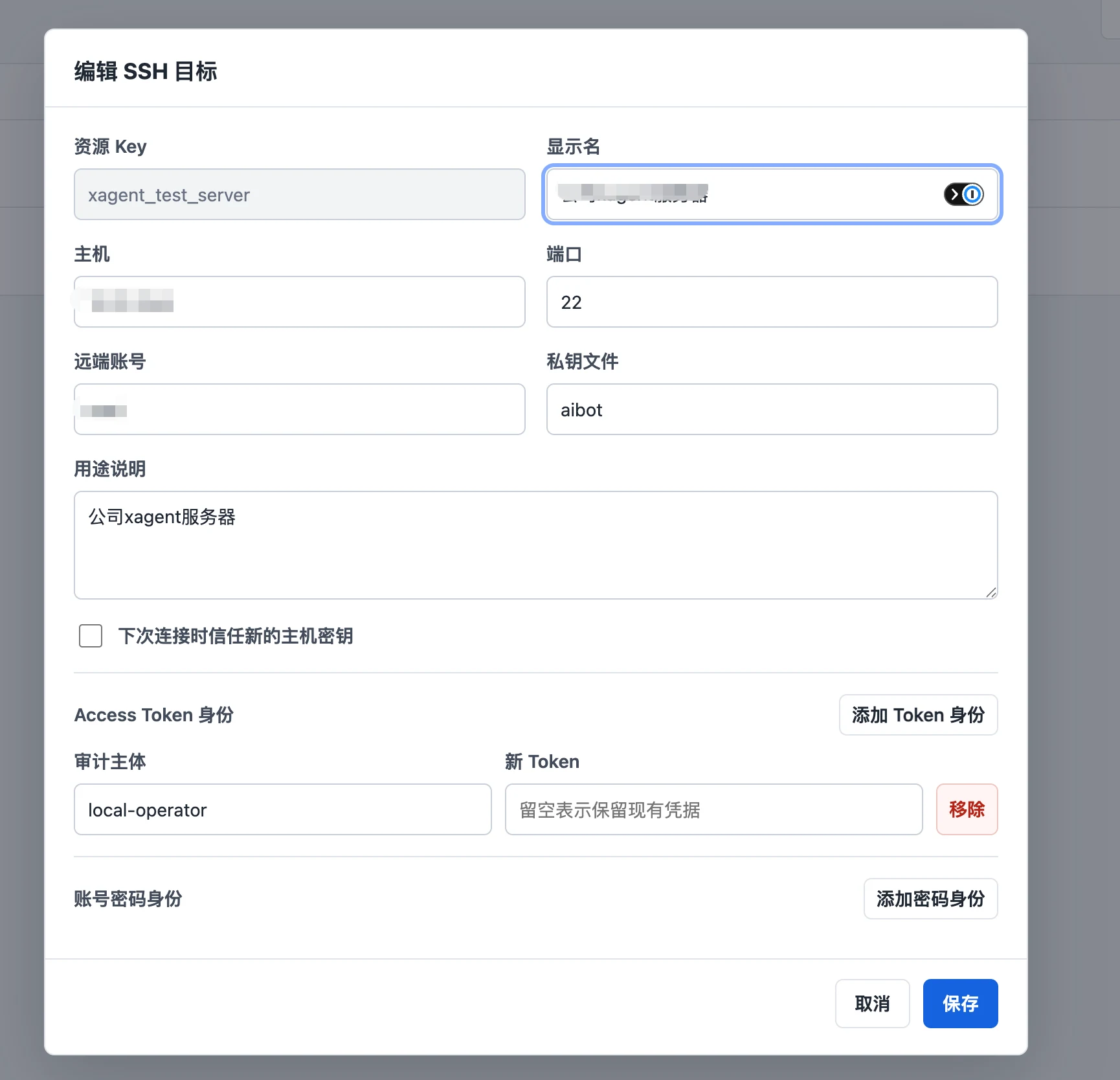

Select Add Target or Edit:

Field	What to enter
Resource key	A stable, unique value such as production_server
Display name	The name users see under Plugin Connections
Host	The SSH address reachable by the AgentPlugin Server
Port	The actual service port, commonly 22
Remote account	The account the AgentPlugin signs in as with the private key
Private-key file	A filename under keys/, such as production_server; paths are not allowed
Purpose	A short description of the server; do not include tokens or other credentials
Access Token identity	The principal + token entered by xAgent users and recorded for audit attribution
Username/password identity	An AgentPlugin-local username and password, not the remote SSH password

The management page stores a SHA-256 digest for a new token and a bcrypt digest for a new password. Leaving an existing credential empty while editing preserves its current value.

Saving a target reprobes it immediately. Changes to connection fields close the old SSH connection, user bindings, and related PTY Sessions.

Connect a User

After the administrator adds a target, the user opens Plugin Connections, selects the SSH AgentPlugin and target, and enters the assigned principal and access token or AgentPlugin-local username and password.

These credentials are used only for AgentPlugin authentication and auditing. Remote SSH authentication still uses the administrator-defined remote account and the private key under keys/.

Start with read-only commands:

List my available SSH targets, then run uname -a and pwd on the test server. Do not modify files.

The SSH AgentPlugin supports bounded commands, interactive PTYs, and SFTP upload and download. It does not currently support port forwarding, jump hosts, agent forwarding, keyboard-interactive authentication, or arbitrary TCP proxying.

Host Fingerprints

On the first connection, the AgentPlugin records the remote host key's SHA256: fingerprint. If the fingerprint changes later, the target enters host_key_changed; the AgentPlugin does not trust the new key automatically.

Select Trust the new host key on the next connection only after confirming through another channel that the server intentionally changed its SSH host key. Do not clear the old fingerprint if the change cannot be verified.

Edit config.yml Directly

The management page maintains targets and access identities. Edit config.yml for the listen address, API Key, state directory, timeouts, file limits, and audit mode:

ssh_agent_plugin:
  addr: 127.0.0.1:19095
  api_key: replace-with-a-long-random-system-api-key
  state_dir: /opt/xagent/agent-plugins/ssh/state
  connect_timeout_seconds: 10
  exec_timeout_seconds: 30
  max_output_bytes: 1048576
  shell_idle_timeout_seconds: 900
  shell_buffer_bytes: 1048576
  max_file_bytes: 67108864
  file_ttl_seconds: 900
  audit_file: ./logs/ssh-audit.jsonl
  audit_shell_input: hash_only
  targets:
    - resource_key: production_server
      label: Production Server
      description: Governed operations target
      host: 10.0.0.20
      port: 22
      remote_username: deploy
      private_key: production_server
      access:
        tokens:
          - principal: operator
            token_hash: sha256:replace-with-64-hex-characters

Restart after editing config.yml directly or replacing a file under keys/:

sudo systemctl restart xagent-ssh-agent-plugin
sudo systemctl status xagent-ssh-agent-plugin

audit_shell_input supports full, hash_only, and none. Shell input may contain sensitive values; production deployments normally use hash_only or none.

Common Problems

State or symptom	Fix
invalid_config	Check that the key is under keys/, only the filename is configured, the key is a regular file, and its mode is 0400 or 0600
auth_failed	Check the remote account, confirm the public key is in authorized_keys, and confirm the SSH Server permits public-key authentication
unreachable	From the AgentPlugin Server, check the address, port, firewall, routing, and SSH service
host_key_changed	Verify the host-key change first, then trust the new key only after confirmation
User cannot connect	Confirm they entered the AgentPlugin principal/token or local username/password, not the remote SSH password
Replacement key has no effect	Restart the SSH AgentPlugin; keys/ does not hot-reload
Management action is missing	Upgrade to 0.0.5 or later and confirm the AgentPlugin started from a configuration file with a non-empty API Key

Linux logs:

journalctl -u xagent-ssh-agent-plugin -f
sudo tail -f /opt/xagent/agent-plugins/ssh/logs/ssh-audit.jsonl
